ANTI-FREEZE HEAT TRACING CABLE – HEAT TRACING CABLE FOR TEMPERATURE MAINTENANCE
Self-regulating heat tracing cable: the tracing solution manufactured by TECHNITRACE
Heat tracing cables provide high-performance tracing for frost protection of pipes and hydraulic components. Heat tracing cables are a highly effective solution for protecting your plants, fruits, or vegetables from frost, both in greenhouses and outdoors.
Heat tracing cable
temperature maintenance
Heat tracing cable
frost protection
Self-regulating heat tracing cable: Certified quality
TECHNITRACE manufactures its own heat tracing cables with a very high level of requirement (TECHNITRACE certified ISO9001: 2015, CABT heat tracing cable: certified QB58 by the SCTB, CAMT heat tracing cable: certified QB58 by the SCTB), will be able to provide you with its expertise to study all your frost protection projects and for maintaining the temperature of sensitive elements.
Self-regulating heat tracing cable: Areas of application
The TECHNITRACE heat tracing cable, with its performance and long-lasting reliability, its intrinsic qualities, and its flexibility of use, meets the needs of a very diverse clientele:
- Agriculture
- Viticulture
- Horticulture
- Industry
- Construction
- Chemicals
- Aeronautics
- Residential Construction
- Mobile Home
- Tiny House
- Boat Building
- Plumbing
Self-regulating heat tracing cable: Main uses
To meet the needs of each customer, TECHNITRACE manufactures and offers heat tracing cables with the most suitable specifications:
Heat tracing cable for frost protection of cold water pipes
Heat tracing cable
for maintaining the temperature
of pipes and tanks (up to 35°C)
Self-regulating heat tracing cable: Areas of application
The self-regulating anti-freeze heat tracing cable manufactured by TECHNITRACE is sold either in short lengths (5, 10 or 20m), or in reels (50, 100 or 250m), in 12, 24, 48, 110 and 220 Volts, with or without braid, and in different powers: each frost protection or temperature maintenance project needs to be studied to determine the most appropriate characteristics to meet your needs.
Heat tracing cable
in 5 m, 10 m and 20 m
Heat tracing cable in reels
of 50 m, 100 m and 250 m
Heat tracing cable
available in 12 V, 24 V, 48 V, 110 V and 220 V
Low temperature self-regulating heat tracing cable: Advantages
Heat tracing cable
and specificity of the semiconductor element
The CABT low-temperature self-regulating heat tracing cable manufactured by TECHNITRACE consists of a semi-conductor plastic heating element that adapts its heat output (W/m) at every point according to the local temperature. This intrinsic feature of the semi-conductor heating element therefore makes it possible in certain cases to dispense with a regulation system (self-regulation).
Heat tracing cable
cut to the desired length
The TECHNITRACE heat tracing cable can be cut to the desired length on site (150m max) and is therefore very easy to install. For your electrical tracing installations, particularly on chilled water networks, we strongly recommend the combination of our THA/E electronic regulators. These, equipped with a current absorber at start-up, guarantee you rigorous and reliable electronic regulation (energy savings of over 50%).
Heat tracing cable
with locally adapted power
The TECHNITRACE heat tracing cable allows for branching from a single power supply point. The semiconductor heating element adjusts its power locally. The design and materials of the TECHNITRACE heat tracing cable offer good flexibility of use, which allows for the tracing of hydraulic components (valves, pumps, etc.). Finally, still among the many advantages of the TECHNITRACE heat tracing cable, it allows for overlaps during installation (self-regulating).
Self-regulating heat tracing cable: Installation tips

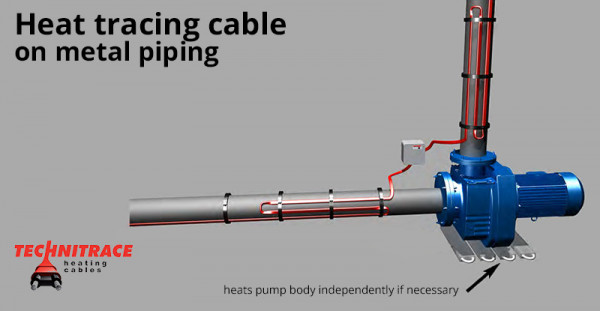

Self-regulating heat tracing cable
on metal pipes
On metal piping, we recommend providing extra lengths of heat tracing cable for thermal compensation of hydraulic devices, as well as for dismantling (thermal compensation coil before and after the device to be maintained). When installing the heat tracing cable on metal piping, it is important to take care against possible pinching or overlapping.
Self-regulating heat tracing cable
on plastic pipes
On plastic piping (PVC, HDPE, etc.), we recommend providing a grounding braid. The heat tracing cable will be placed on a heat sink (aluminum adhesive) and covered with a heating chamber (aluminum) to optimize heat transfer.
Self-regulating heat tracing cable: A question, some information?
