HIGH FLEXIBILITY SELF REGULATING HEATING CABLE CABT/FLEX
CABT low temperature self-regulating heating cable consist of a heating semiconductor plastic element which adapts its calorific power (W/m) on each point depending on the local temperature. This intrinsic feature of the semiconductor heating element allows in some cases to dispense of using a thermostatic controler (self-regulation).
They can be cut on the adjusted length directly on the job site.
For your heat tracing installations of cold water, we strongly recommend the combination of our electronic THA / E controllers. The latter are equipped with a current absorber for start up of self regulating heating cables. They are the guarantee of a rigorous and reliable electronics regulation at 5°C energy saving of + 50%. The polyurethane insulating sheath offers unrivaled flexibility of implementation in small world of self-regulating heating cables.
APPLICATIONS RANGE
EXCLUSIVELY USED TO PREVENT PIPE FREEZING
- Freeze protection of water and domestic fuel oil pipes.
- Temperature maintenance until 35°C of pipes, tanks, balloons, …
Minimum order : 2*300m
Thermal power output determined in compliance to standard EN 62.395
MAIN BENEFITS
Flexible self regulating heating cables CABT/FLEX offer :
- can be cut directly on the adjusted length on the site
- allow derivation from a unique and single feed point
- semiconductor heating element adapts its power locally

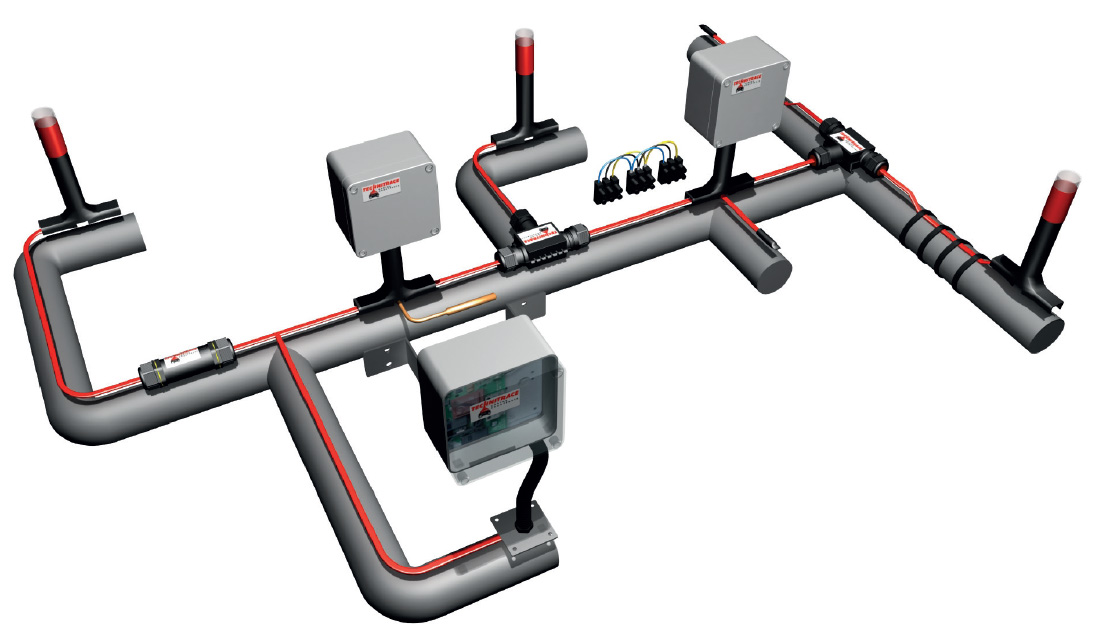

- VERY HIGH FLEXIBILITY allowing the tracing of hydraulic organs (valves, pumps, …)
- allow overlaps during implementation (self-regulating)
- maxi temp energized : 65 ° C (power on)- maxi temp de-energized : 75°C
OPEATIONAL PRINCIPLE
The  diffusion of heat generated by our self regulating heating cable varies and depends on where the cable is situated and the cables contat temperature.Â
Thermal power output determined by the manufacturer in compliance to standard EN62.395
- very flexible Polyurethan jacket
- *tinned copper braid (option)
- thermal calibration: Max. rated current * 2
- use C or D curve circuit breakers
- mini order 600m : 12, 24, 48, 115, 230, 400 V
- possibility of a maximum current spike of 3 * In / 300ms
- necessary use differential circuit breaker: 30 mA
- maximum length / power point = approximately 110 m
