Connection and junction boxes
BJK/S et BJK/RR
Technitrace installation and connection accessories
Halogen-free polycarbonate box – IP 66 (CEI 529)
Knock-outs / temp. range – 40°C / + 80°C
BJK/S : 125*125*75 mm
BJK/RR : 150*125*75 mm
Mobile terminals + PE power supply
Quick connectors P & T CONNECT
Technitrace installation and connection accessories
P-CONNECT : cable extension IP 65
Temperature range -20°C / +125°C
Cable cross section area :
mini : 1.00 mm² / maxi 2.50 mm²
Shipped with glands and connection block
Quick connectors P & T CONNECT
Technitrace installation and connection accessories
T-CONNECT : T-box IP 68
Temperature range -20°C / +125°C
Cable cross section area :
mini : 1.00 mm² / maxi 2.50 mm²
Shipped with glands and connection block

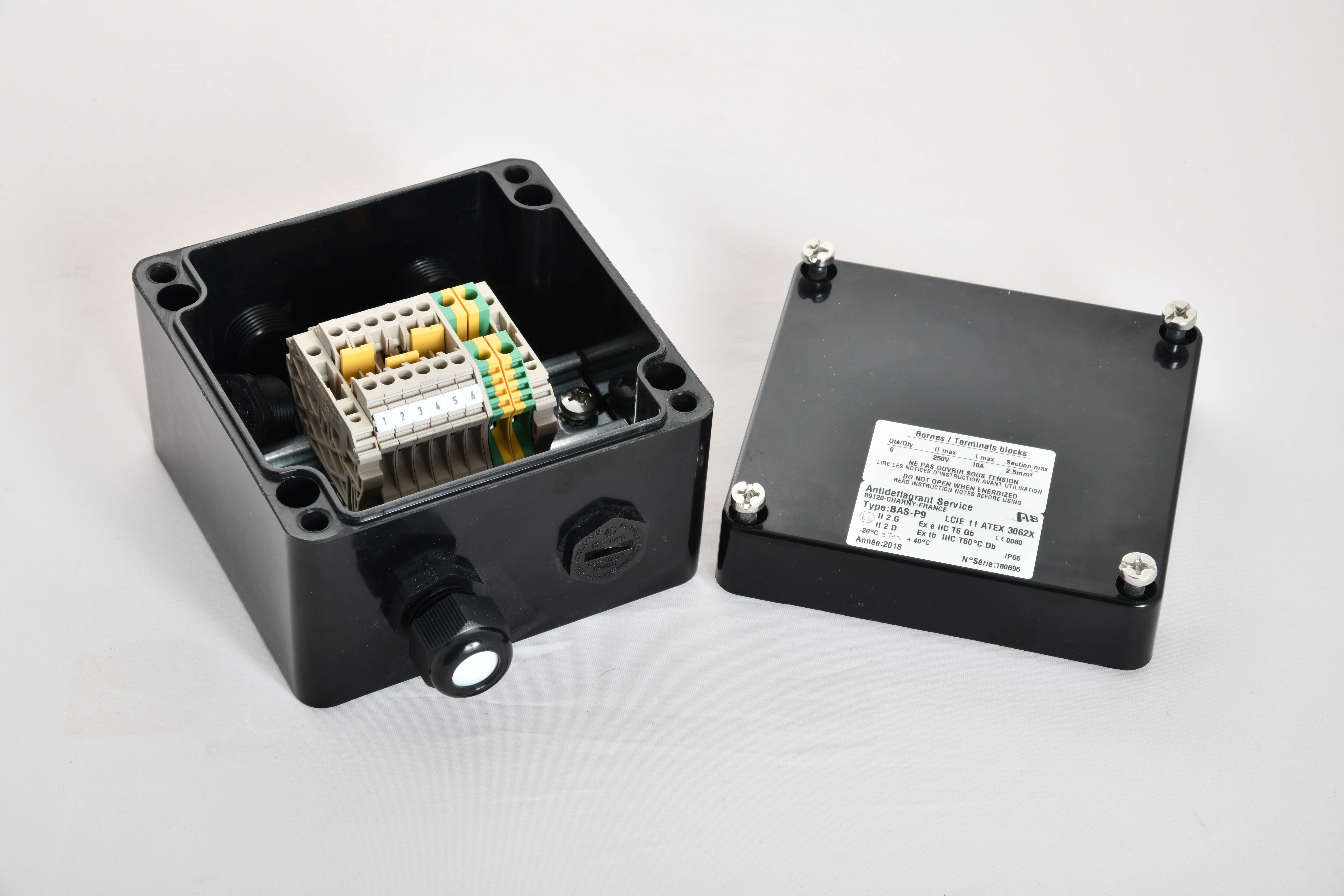

Hazardous area connection box BJE/EEx ‘e’
Hazardous areas – ATEX certified
Technitrace installation and connection accessories
Increased Safety connection box II C T6 (85°C) – EEx ‘e’
Graphitized polycarbonate / 4 holes PE 13 + 2 plugs with
its power supply gland +Â DIN rail + 4 bridgable terminals
+ 2 earth terminals / 123*123*92 mm
Hazardous area connection box ATEX-BJD/Ex”d”
Hazardous areas – ATEX certifed
Technitrace installation and connection accessories
Flameproof connection box II C T6 (85°C) – EEx ‘d’
– Cast iron
3 holes 3/4″ NPT + 1 plug
max. 4 drillings 3/4″ NPT
