Frost protection cables – Low temperature self-regulating trace heating cables CABT
Technitrace is a french heating cable manufacturer and our frost protection cables are of the highest quality. CABT low temperature self-regulating heating cable consist of a heating semiconductor plastic element which adapts its calorific power (W/m) on each point depending on the local temperature. This intrinsic feature of the semiconductor heating element allows in some cases to dispense of using a thermostatic controler (self-regulation).
Our frost protection cables can be cut on the adjusted length directly on the job site. For your heat tracing installations and especially on temperature maintenance of hot water systems, we strongly recommend the combination of our electronic THA / E controllers. The latter are equipped with a current absorber for start up of self regulating heating cables. They are the guarantee of a rigorous and reliable electronics regulation (energy saving of + 50%).

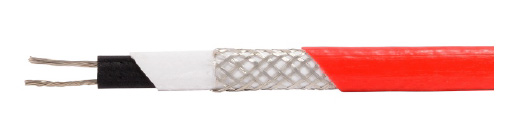

Our frost protection cables (self-regulating heating cables) are now available in 12, 24, 48, 110, 220 and 400 Volts.
FROST PROTECTION CABLE: OUR RANGE OF APPLICATIONS
Frost protection cables CABT
- Frost protection of water and domestic fuel oil pipes.
- Temperature maintenance until 35°C of pipes, tanks, balloons, …
- Frost protection for a wide range of industries

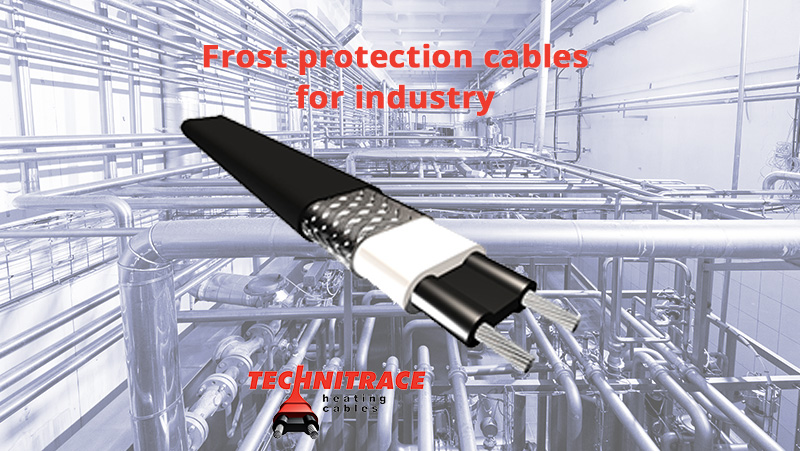

Frost protection cables for industry
Frost protection cables for aeronautics
Frost protection cables for boat

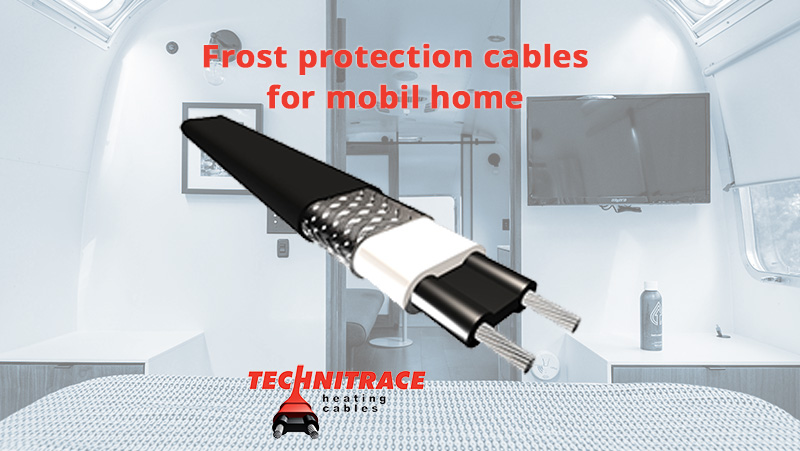

Frost protection cables for mobil home
Frost protection cables for tiny house

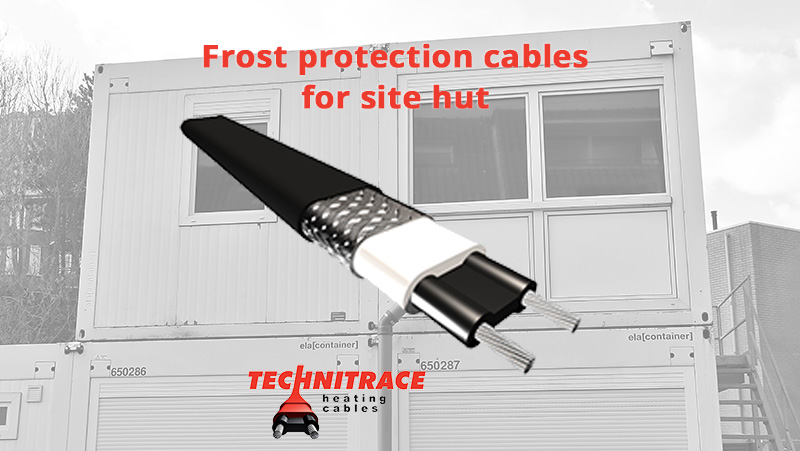

Frost protection cables for site hut
Frost protection cables for house
De-icing cables for gutters
De-icing cables for roofs
Thermal power output determined in compliance to standard EN 62.395.
FROST PROTECTION CABLES: MAIN BENEFITS
- Can be cut directly on the adjusted length on the site
- Allow derivation from a unique and single feed point
- Semiconductor heating element adapts its power locally
- Good flexibility allowing the tracing of hydraulic organs (valves, pumps, …)
- Allow overlaps during implementation (self-regulating)
- Maxi temp energized : 65 ° C (power on)- maxi temp de-energized : 75°C
- Technical CSTB approval, in accordance with the European standards in force
FROST PROTECTION CABLE: OPERATIONAL PRINCIPLE
The dissipated heating power of the self regulating heating cables CABT&CABT++ at each point of the frost protection cable varies
according to the temperature of the contact point of diffusion where the cable is positionned.
Thermal power output determined by manufacturer in compliance to standard EN 62.395.
FROST PROTECTION CABLES: MAIN FEATURES
Dissipation curves are theoretical and solely provided for information purposes.
Datasheet CABT
- Polyolefin fire retardant sheath
- Polyolefin fireproof overjacket (CG or RG version)
- FEP fluoropolymer overjacket (CGf version)
- For corrosive and chemically aggressive environments
- Voltage: 230 V / 240 V / 50 or 60 Hz (115 V optional)
- Thermal calibration: Max. rated current * 2
- Use C or D curve circuit breakers
- Possibility of a maximum current spike of 3 * In / 300ms
- Necessary use differential circuit breaker: 30 mA
- Maximum length / power point = approximately 110 m
FROST PROTECTION CABLES: ACCESSORIES
FROST PROTECTION CABLES: PRODUCT CONTACT FOR NORWAY SWEDEN FINLAND
If you need information about our products and prices, do not hesitate to contact us. Every 3 months, we are present in Stavanger for a week, we can meet!
