SELF REGULATING HEATING CABLES CABT-24/48 V

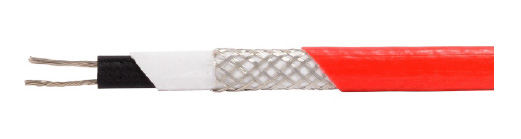

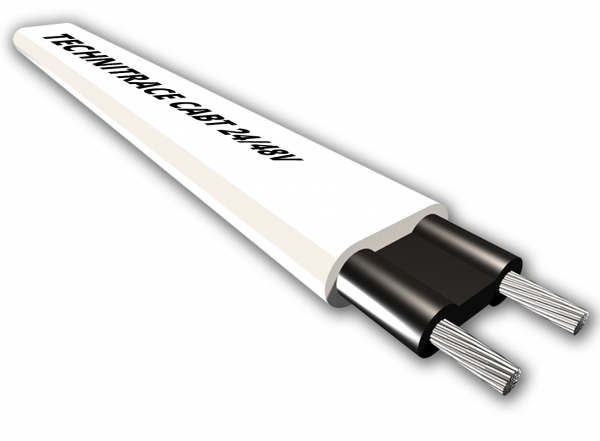

The CABT/24V and CABT/48V low voltage and low temperature self-regulating heating cables consist of a semi-conductive plastic heating core that adjusts at any point its calorific power (W/m) depending on the local temperature.
This intrinsic feature of the semiconductor heating element can avoid using in certain cases regulation system (self-regulation).
They can be cut to length on site and are therefore very easy to install

APPLICATION RANGE

Self regulating heating cables CABT – 24/48 V

  • Freeze protection or low temperature maintenance of pipes, tanks, valves for your camper van, mobile home
  • Frost protection of video, cabinets and boxes, antennas, solar panels, etc
  • Frost protection of retractable parking bollards
  • Use directly on battery or solar panel regulator

BENEFITS

Self regulating heating cables CABT 24 or 48 V direct current

  • can be cut to the desired length on site
  • direct power supply at 24 or 48 V (depending on version) without transformer
  • allow connecting branches with power from a single point
  • semi-conductive heating element that adjusts locally its heating power
  • good flexibility allowing the tracing of hydraulic components (valves, pumps, etc.)
  • allow overlaps during implementation (self-regulating feature)
  • CABT heating cables support 65°C power on / 75°C power off (de-energized)

Other voltages available: (12, 24, 48,1 15, 230, 400 V)
Ask us

MAIN FEATURES

  • Polyolefin fireproof sheath
  • Polyolefin fireproof over jacket (CG or RG version)
  • FEP fluoropolymer over jacket (CGf version)
  • for corrosive and chemically aggressive environments
  • voltage: 24 or 48 V Direct Current
  • calibration: Maximum nominal intensity * 2
  • use curve C or D circuit breakers
  • possible current peak of 3 * In / 300ms
  • maximum length / power point = 10 or 20 m
  • if using THA/C or THS: limit the intensity to 16 A

Dissipation curves are theoretical and solely provided for information purposes

If thermostat THA/C or THS used, take care to limit the intensity at 16 A/maxi

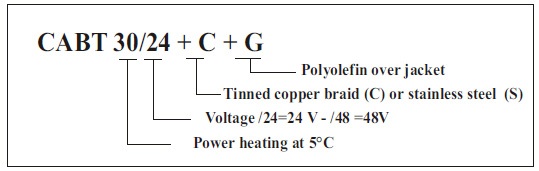

PRODUCT CODE
