SELF REGULATING HEATING CABLES CABT/DE-ICING

The self regulating heating cable CABT/De-Icing is specily designed to prevent against the accumulation of snow or ice on roofs and gutters.
The innovative technology of the Technitrace self-regulating heating adpts its calorific output (W/m) at each point. In presence of snow or ice, its calorific output will increase locally to melt the snow or the ice.When the heating cable will be in a dry atmosphere it will reduce its calorific output saving energy.

Self regulating heating cables CABT/DEN

MAIN APPLICATION

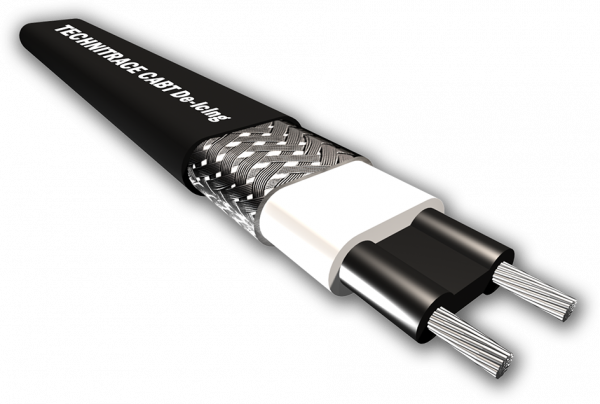

Self regulating heating cables CABT/De-icing

  • Anti snow/ice self regulating heating cable for roofs  particularly for those with  gentle slopes.
  • Anti snow/ice self regulating heating cable for gutters and connecting channels between the roof.
  • Anti snow/ice self regulating heating cable for cloggeds drain pipes
  • Prevent discharge pipes from freezing.
  • snow removal of roofs and particularly at low slopes
  • snow removal of gutters, connecting gutters between roofs
  • snow removal of gutter runs and heaving pipes
  • de-icing of the evacuation gutter, …

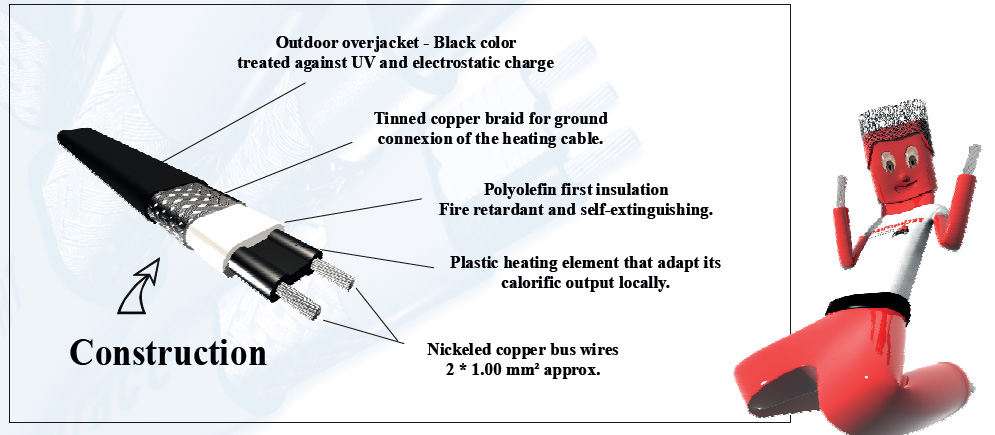

CONSTRUCTION OF A SELF REGULATING HEATING CABLE CABT/DE-INCING

INSTALLATION OF SELF REGULATING HEATING CABLE CABT/DE-ICING

self regulating heating cables CABT/DEN

GENERAL FEATURES

  • Maximum lengtht : 110 m
  • Max temperature exposure ON : 65°C
  • Max temperature exposure OFF : 85°C
  • Supply voltage  : 230 V / 50 Hz
  • Breaker thermal protection : 0.30A/m
  • Breaker sensibility : 30 mA advised
  • Output calorific power: following the thermal transfer : 40 to 20W/m
